What Is a Disconnect Switch?
A disconnect switch is a device that opens an electrical circuit and separates equipment from its power source. The switch provides a clear way to stop power from reaching connected conductors during service work, equipment replacement, or an electrical system change. Disconnect switches may serve a panel, appliance, motor, or complete building service.
Quick Facts About Disconnect Switch
Category
Electrical isolation device
Used for
Separating equipment from power
Common confusion
Disconnect switch and circuit breaker
Also called
Safety Disconnect, Service Disconnect
Often discussed with
Electrical Service Upgrade
Key Takeaways About Disconnect Switch
- It separates electrical equipment from its power source.
- Its location provides a practical service point.
- A circuit breaker is not always the same device.
How Disconnect Switch Works

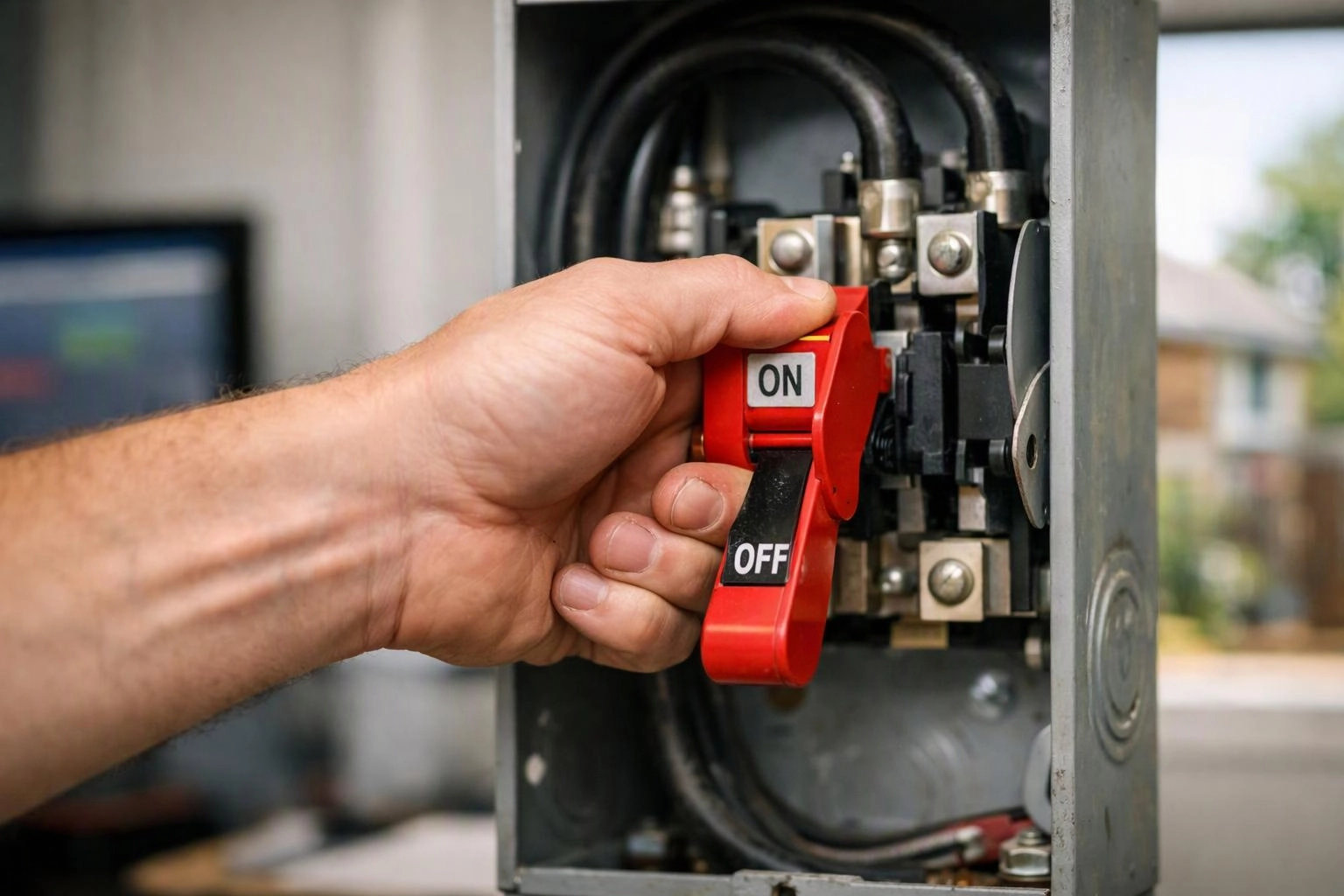

A disconnect switch works by moving its internal contacts between a closed position and an open position. Closed contacts allow current to reach the connected load. Open contacts interrupt the circuit and create a visible operating point for separating the load from its supply.
Related glossary terms: Load Center, Electrical Meter, Electrical Load.
The switch may be installed near equipment, at a service entrance, or beside an electrical panel. Its role depends on the system design and the equipment it serves. A disconnect switch may include fuses, while a plain switch may only open the conductors. A circuit breaker can also interrupt current, but it usually combines switching with automatic protection against excessive current.
During an electrical service upgrade, the disconnect point helps define where the existing service ends and the upgraded equipment begins. Electricians inspect the enclosure, conductor connections, labeling, and switching action as part of the work.
From the Toledo Electrician team
When we work on an electrical service upgrade, we identify the disconnect switch before planning changes to the service equipment. We check its condition, conductor terminations, enclosure, and relationship to the load center. We also confirm that the switching action matches the system design.
Disconnect Switch in Practice: A Real-World Example
A homeowner planning an electrical service upgrade may have a disconnect switch installed near the service equipment. The switch gives the electrician a defined point to separate the building wiring from the incoming supply while the upgrade work proceeds.
