Why does an AFCI trip after a new device is connected?

A connected device may have damaged wiring, an internal fault, or operating characteristics that create an arc-like pattern. Testing can separate an appliance problem from a circuit problem.

Can an AFCI protect every device on a circuit?

AFCI protection depends on the device location and circuit arrangement. A breaker generally protects the circuit conductors, while a receptacle device protects downstream wiring and connected outlets.

How does an AFCI differ from a GFCI?

An AFCI responds to electrical arcing patterns. A GFCI responds to an imbalance between outgoing and returning current, which can indicate current flowing along an unintended path.

Glossary

What is AFCI?

An AFCI is an arc-fault circuit interrupter that monitors electrical current for patterns linked to unintended arcing. When the device detects a dangerous arc pattern, it opens the circuit to stop power flow. AFCI protection helps address arcing conditions that ordinary overcurrent protection may not detect quickly.

Quick Facts About AFCI

Key Takeaways About AFCI

AFCIs respond to arc patterns, not only excessive current.
A tripped AFCI can indicate wiring or equipment trouble.
AFCI protection is not the same as ground-fault protection.

How AFCI Works

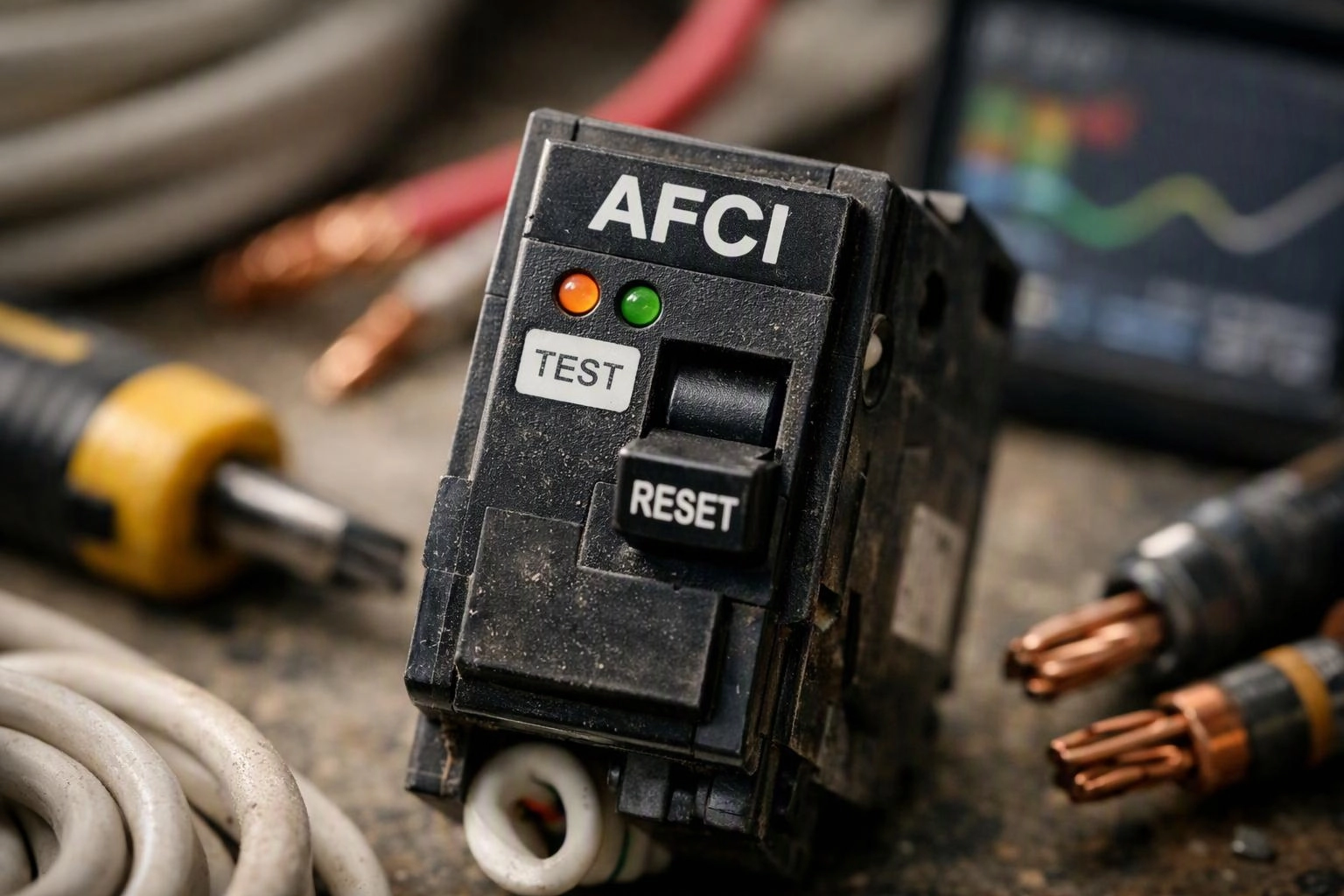

A black AFCI circuit breaker with test and reset buttons sits among electrical cables and copper wire ends

AFCI protection uses electronic sensing to examine the electrical waveform on a circuit. The device looks for irregular patterns associated with arcing, which can occur through damaged insulation, loose connections, or failing equipment. When the detected pattern reaches the device's trip criteria, the AFCI opens the circuit.

Related glossary terms: Ground Fault, Circuit, Short Circuit.

An arc-fault circuit interrupter may be installed as a circuit breaker or as a receptacle, depending on the electrical design. A breaker protects the conductors connected to that circuit, while a receptacle protects wiring and devices downstream from its location. AFCI operation does not replace grounding or ground-fault protection. A circuit that trips repeatedly needs evaluation because the cause may involve the wiring, a connected appliance, or the protective device itself.

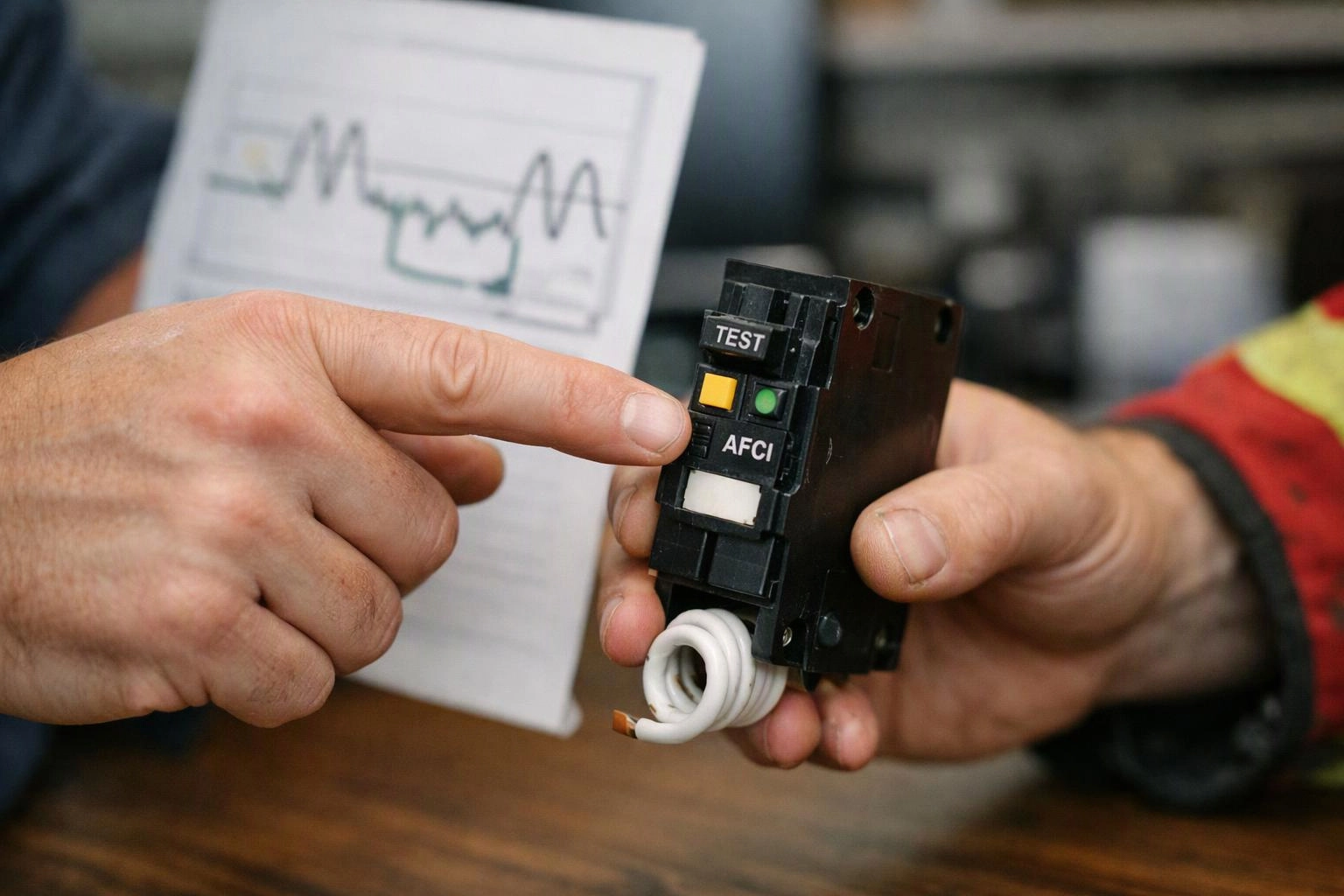

Two hands hold an AFCI breaker while one finger points to its test button, with a diagram in the background

From the Toledo Electrician team

When we check AFCI protection, we inspect the breaker or receptacle, confirm the circuit connections, and test for conditions that can trigger unwanted trips. We also examine connected devices and visible wiring so an AFCI replacement does not hide an underlying electrical fault.

AFCI in Practice: A Real-World Example

A bedroom circuit has an AFCI breaker that trips after a receptacle becomes loose or a cord is damaged. Electrical Code Correction may include identifying the fault, repairing the connection or wiring, and verifying that the protective device operates correctly.
