What is Junction Box?

Understanding Junction Box

Junction box means an enclosure that holds electrical wire connections. It protects those connections. Electricians use it where cables join, split, extend, or change direction. Inside the box, conductors may connect with approved wire connectors, terminal blocks, switches, or other listed devices. The enclosure helps prevent accidental contact. It also shields connections from impact, dust, and other damage.

Related glossary terms: Branch Circuit, Conduit, Electrical Grounding.

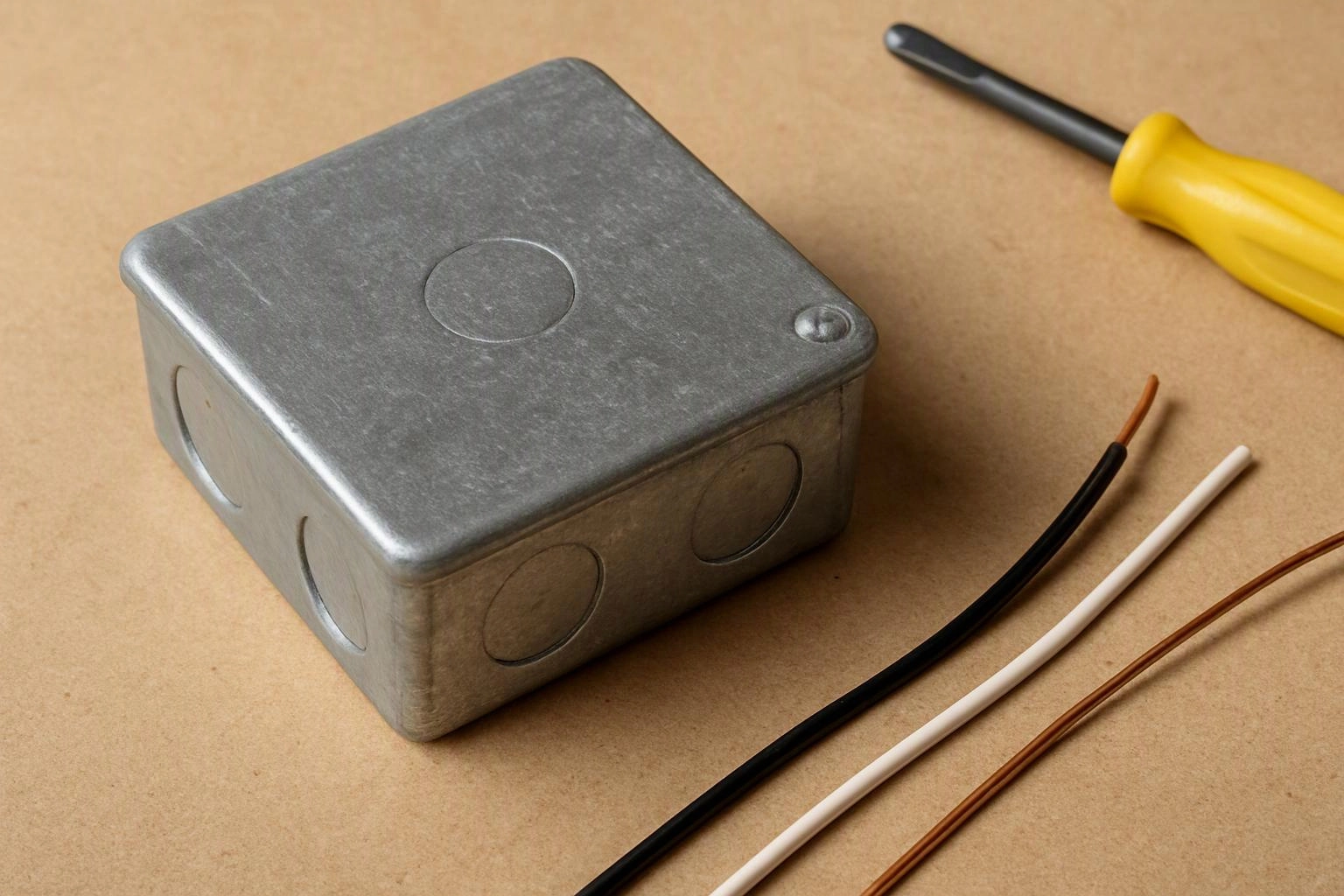

A junction box can be metal or nonmetallic. The wiring method and location guide this choice. Common examples include steel boxes for exposed commercial wiring. Plastic boxes suit many home cable installations. Every connection must remain inside the box. The box also needs a suitable cover. The cover helps protect the enclosure after wiring is complete.

How Junction Box Works, Is Measured, or Is Used?

Electrical current travels through connected conductors. The junction box provides protected space around the connection point. An electrician removes only the needed cable jacket. The electrician joins matching conductors. Then, the electrician secures the connection with a listed connector. Grounding conductors need the required connection to the box. This applies when a metal enclosure forms part of the grounding path.

Box capacity is based on box fill. This accounts for conductor volume, wire size, and grounding conductors. It also includes internal cable clamps and devices in the box. A crowded box can damage insulation. It can also make connections hard to secure. During installation, the electrician checks the box size and conductor count. The electrician compares them with applicable National Electrical Code requirements. The box also needs fittings that hold cables firmly. These fittings prevent abrasion.

Placement affects how the box can be used later. A box hidden behind drywall, paneling, or permanent building materials may block inspection. It may also prevent repairs. A properly installed box stays reachable through an opening, access panel, or exposed surface. Some boxes support lighting fixtures or other equipment. The box must be listed and rated for the specific load.

Why Junction Box Matters?

A properly selected junction box lowers the risk of loose connections. It also lowers the risk of damaged insulation and accidental contact with energized parts. Enclosed connections are easier to inspect than loose splices inside walls or ceilings. The box gives future workers a known location for testing and repairs. This can reduce troubleshooting time.

Box selection affects safety and workmanship. The installer must match the enclosure to the environment and wiring method. The installer must also match the conductor size and equipment weight. Moisture, corrosion, heat, or physical impact may require a different box rating. They may also require different construction. A cover that doesn't fit is a warning sign. Missing cable clamps are another warning sign. Overloaded conductors also show that the installation needs correction.

When Junction Box Matters Most?

Junction boxes become especially important during remodeling and circuit extensions. They also matter.emergency electrical repairs. A new receptacle, light, appliance circuit, or generator connection may need a safe transition. This transition links existing and new wiring. The box helps preserve the wiring system's order. It also gives an electrician a controlled place to test each connection.

Use extra care when an existing box shows heat marks or brittle insulation. Corrosion, water entry, or loose connectors also need care. These conditions can signal a failing connection. They can also signal an unsuitable enclosure. Before work continues, check whether the box is accessible. Check whether its cover is present. Check whether its size fits the conductors inside. Local permit and inspection rules may also apply to new wiring. They may apply to changed wiring, especially during property renovations.
