What Is Thermal Imaging?
Thermal Imaging is a noncontact inspection method that detects infrared energy and displays temperature differences as colors or patterns. An electrician uses a thermal camera to find unusual heat at electrical connections, breakers, conductors, and equipment. The images help identify areas that deserve closer testing, but they do not replace electrical measurements or visual inspection.
Quick Facts About Thermal Imaging
Category
Noncontact electrical inspection method
Used for
Finding unusual heat patterns
Common confusion
A heat image is not a diagnosis
Also called
Infrared Inspection, Infrared Thermography
Often discussed with
Electrical Safety Inspection
Key Takeaways About Thermal Imaging
- It shows heat patterns without touching energized equipment.
- Warm areas require testing to identify the actual electrical cause.
- A bright image does not automatically prove a dangerous fault.
How Thermal Imaging Works
Thermal Imaging works by sensing infrared energy from surfaces and converting temperature differences into a visual image. A thermal camera shows warmer and cooler areas through contrasting colors or shades. The image represents surface conditions, so the person reading it must consider the equipment type, operating load, airflow, and surrounding materials.
Related glossary terms: Electrical Load, Current, Voltage.

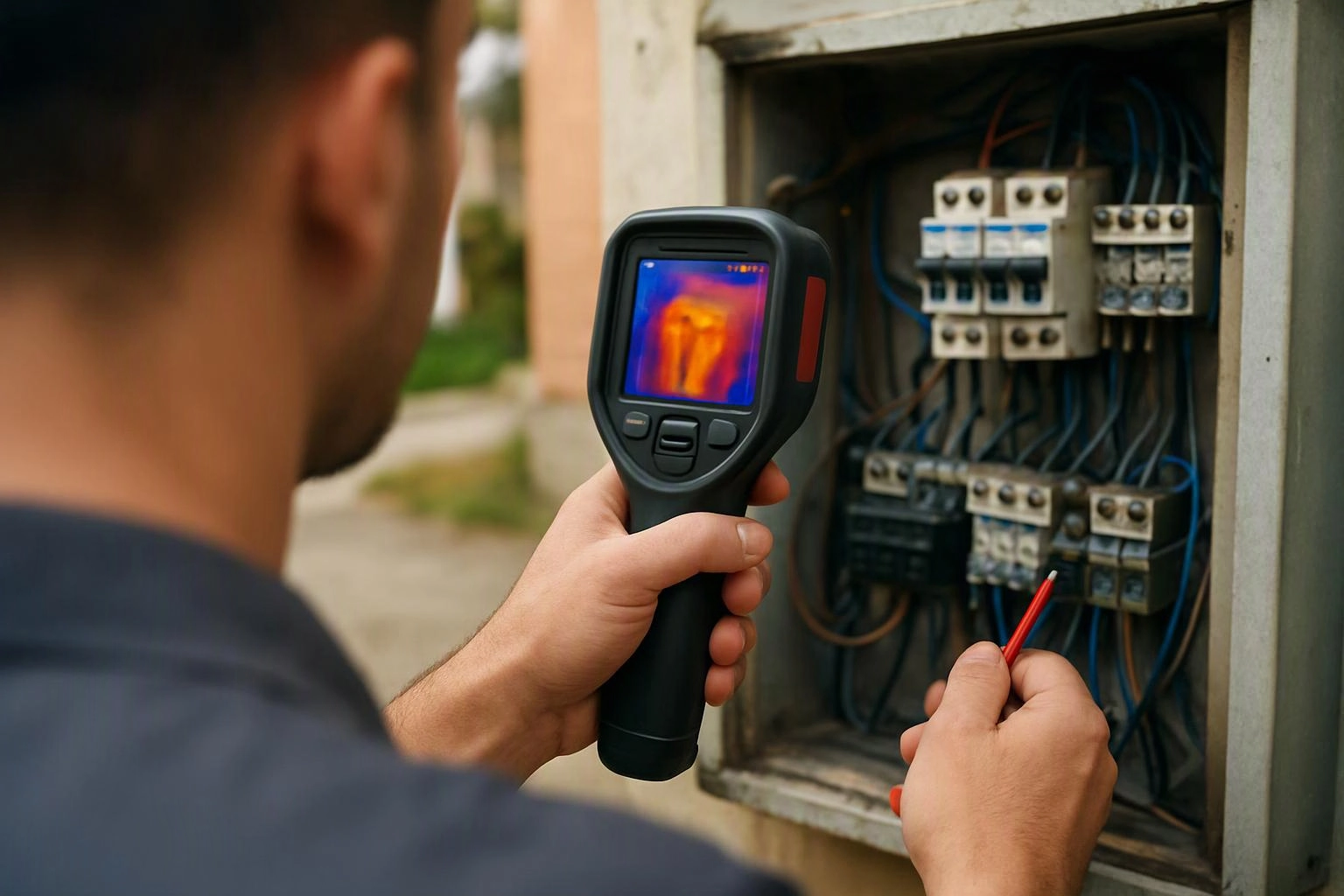

During an inspection, the camera can scan accessible parts of a load center, disconnect, or conductor connection without physical contact. An unusual warm pattern may point to a loose termination, excess current, damaged component, or normal heat from equipment operation. Electrical testing and visual checks help separate those possibilities. Thermal imaging also has limits because blocked surfaces, reflective materials, and changing loads can affect the image.
From the Toledo Electrician team
When we use Thermal Imaging during an Electrical Safety Inspection, we compare heat patterns with the equipment’s condition and operating state. We follow unusual readings with visual inspection and electrical testing. Our team treats the image as evidence that guides the inspection, not as a standalone diagnosis.
Thermal Imaging in Practice: A Real-World Example

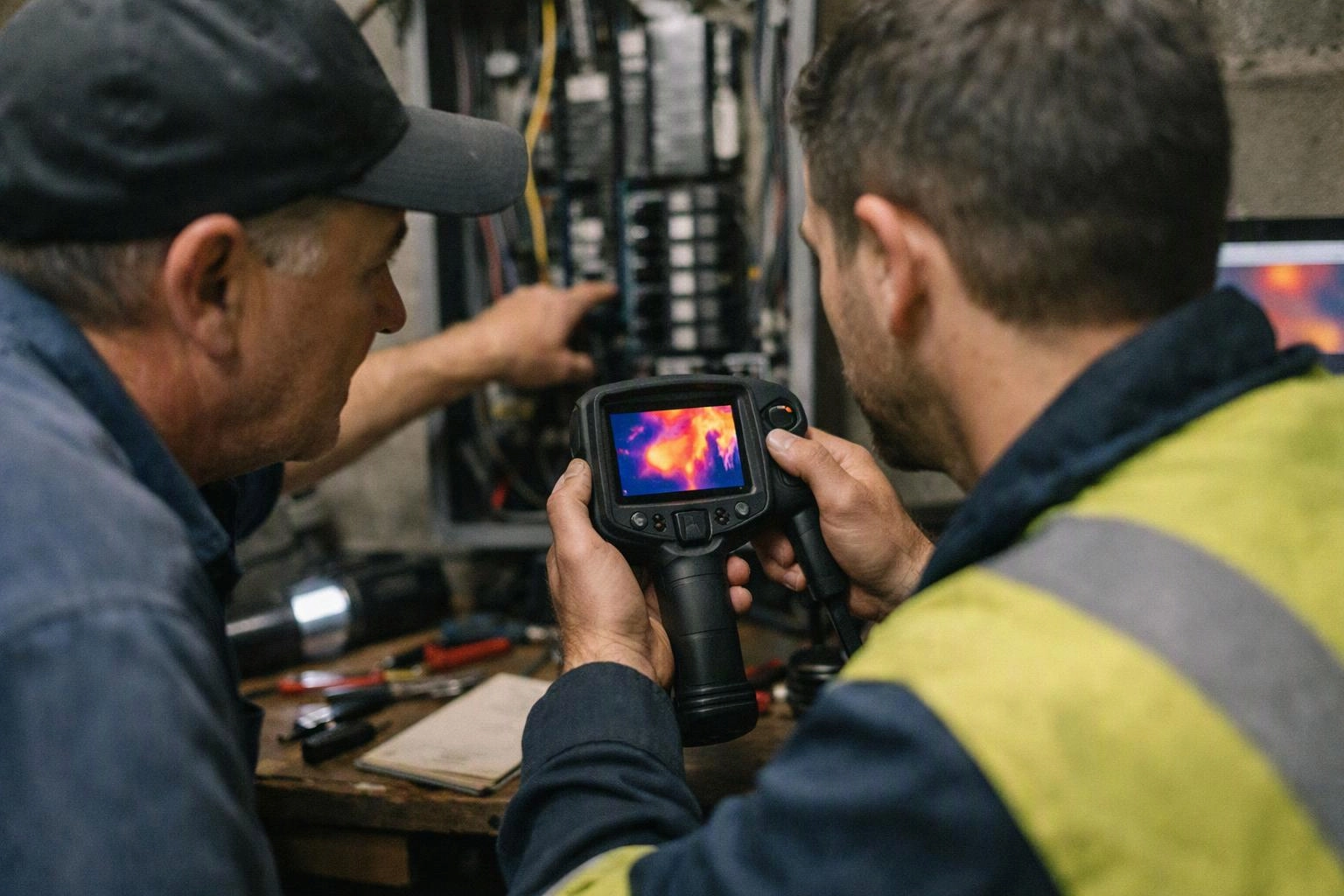

During an Electrical Safety Inspection, a thermal camera may show an unusually warm connection inside an accessible panel. The electrician then de-energizes the equipment when appropriate and checks the connection and circuit to identify the cause.
